TK1560

Description

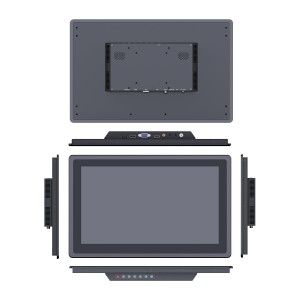

15.6” TOUCH SCREEN MONITOR
The monitor comes with a 10-point touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP64 front panel design is a great convenience for installation methods and applications.

1000 nits & 10-Point Capacitive Touch
Selection of high-quality industrial-grade screen on the market, which not only has prominent color representation, but also high brightness of 1000 nits screen makes it suitable for outdoor sunlight environment

• UPGRADE
• HDMI IN
• VGA IN
• USB
• VIDEO IN
• AUDIO IN
• EARPHONE
• DC POWER IN

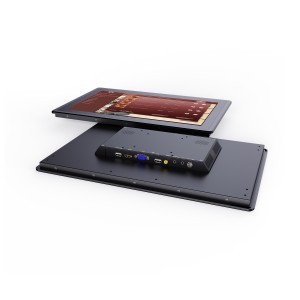

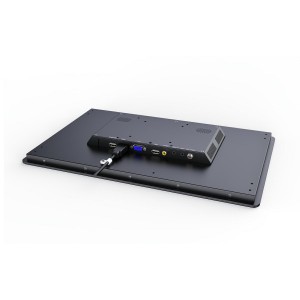

Rich Interfaces
In addition to the interfaces shown, the engineers have creatively reserved a number of expansion ports on the mainboard that can be uniquely customized for different requests The readily replaceable sheet metal also provides a great deal of ease in modifying the interfaces.

IP64 Rating Screen Panel
The front panel is designed to carry IP64 degree of protection which offer complete protection against particles, and a good level of protection against water, up to water projected by a nozzle against front panel from any direction.

• Anti-shedding Design
  A cable clamp allows cable to be fixed on back of monitor so that it won’ t come out under any vibration

• Input Voltage 12-24V
  Wide range of input voltages, which is a choice for different application environments

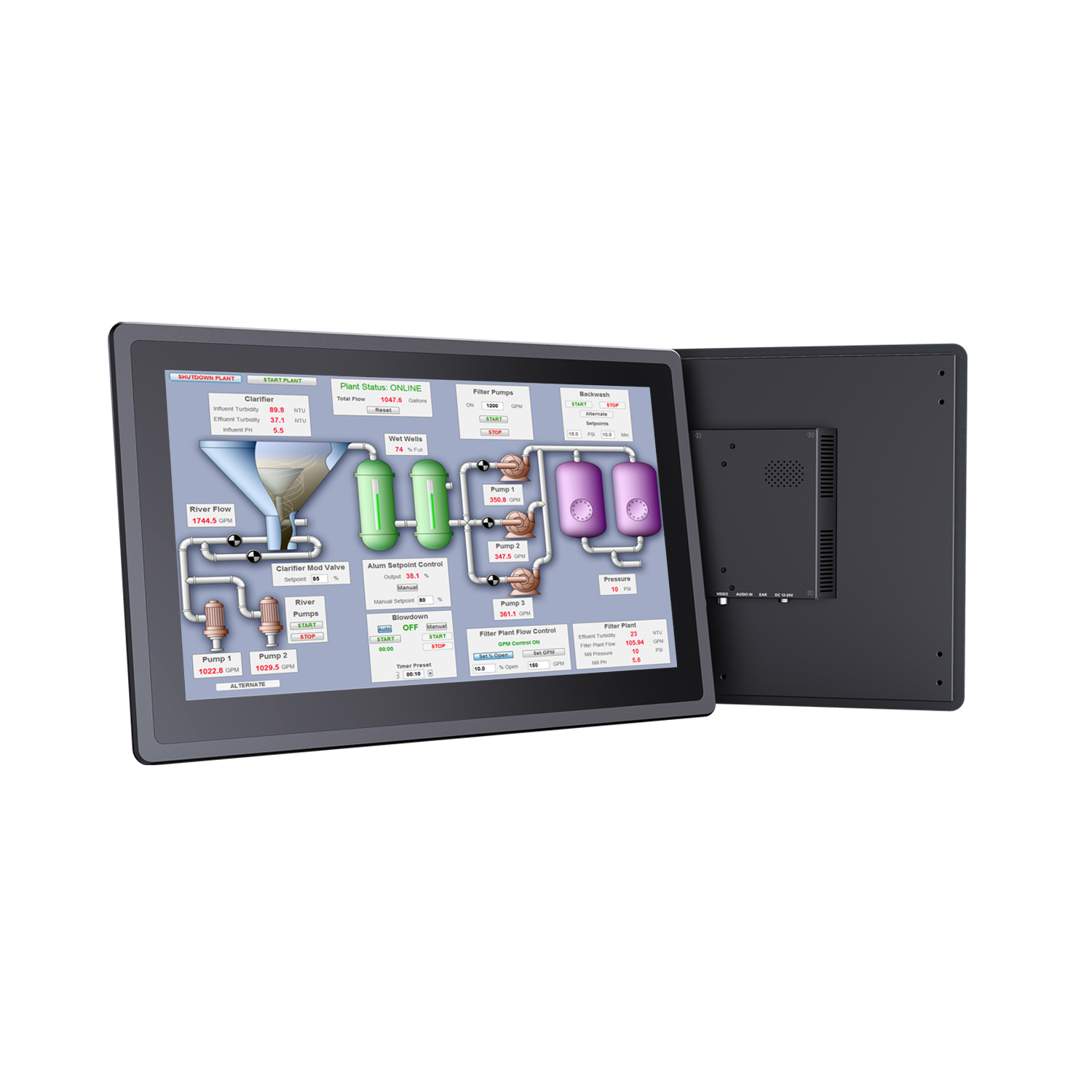

INDUSTRIAL HMI
Industrial HMI Applications
Due to increasingly developed world of industrial automation, HMI are used in a wide range of applications. As the controlling and monitoring core of automated processes, stability, efficiency and environmental adaptability are particularly important. Therefore, it is adapted to different scenarios.

• Smart Locker
• Intelligent Production
• Medical
• Self Service
