TK1850

Description

1000 NITS
Touch monitor features with 1000 nits high brightness for outdoor sunlight readable.

• 18.5″ FHD
  18.5″ Industrial-grade touch screen panel with 1920×1080 resolution.

• 1000 NITS
  The screen can still be seen clearly in outdoor use without hindering operation.

• AUTO DIMMING
  Depending on the intensity of ambient light, the brightness of screen will be automatically adjusted to save power.


ANTI-GLARE
SCREEN WITH ANTI-GLARE COATING
The optical bonding process can remove the air layer between the LCD panel and the glass, ensuring that foreign objects such as dust and moisture will not damage the LCD panel. Anti-glare screen can reduce reflective glare in the environment.

7H AND IKO7
HARDNESS/COLLISION
The hardness of the screen is greater than 7H and it has passed IK07 test.

HIGH SENSITIVITY
GLOVE TOUCH
Operate with wet hands or a wide range of gloves, such as rubber gloves, latex gloves and PVC gloves.

HDMI/VGA/AV
RICH INTERFACES
The monitor has a rich interfaces, including HDMI, VGA and AV interfaces that can transmit FHD video USB ports support touch function and upgrade.

• ANTI-DROP

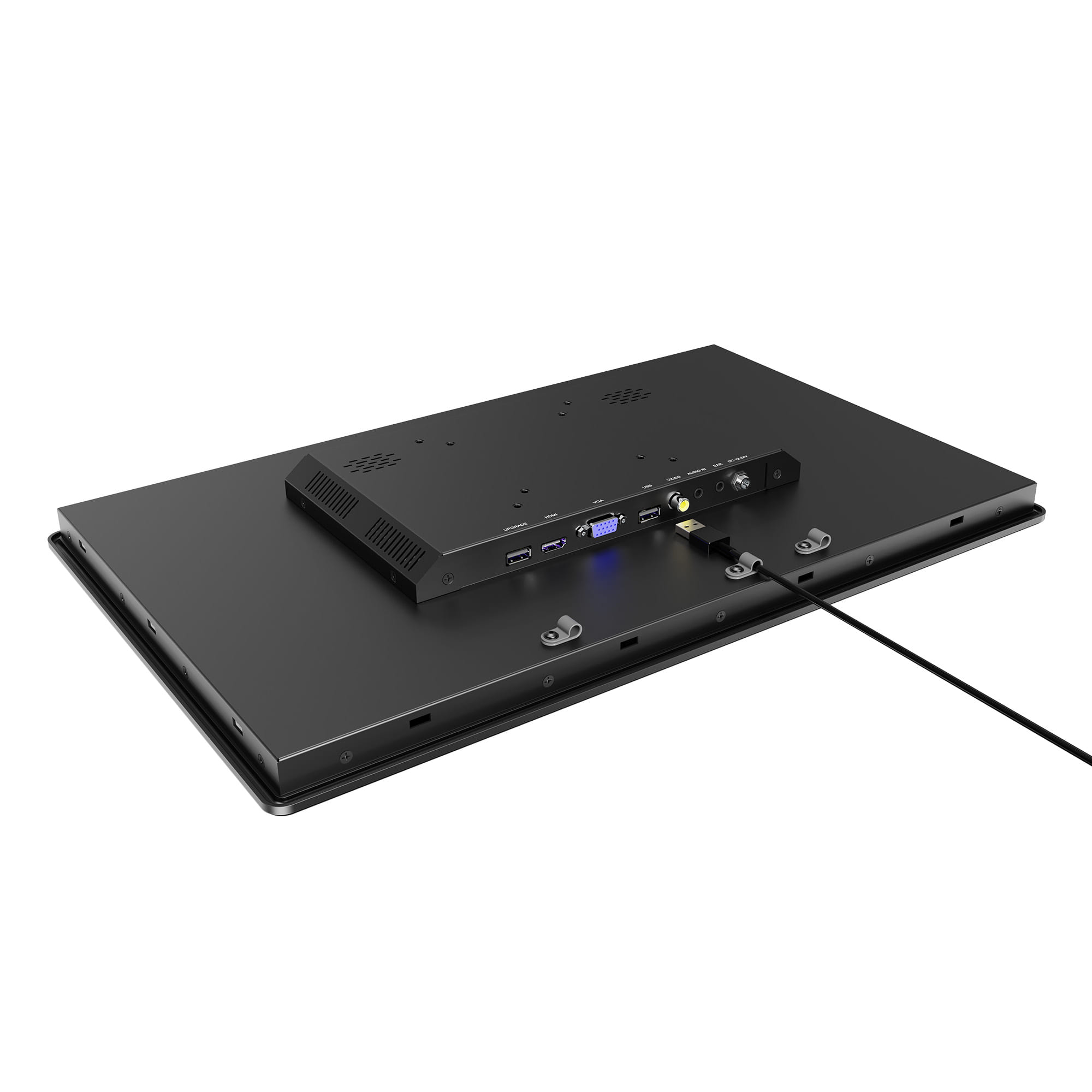

  Anti-drop design for cables

• DC POWER IN
  12V-24V Input

• EARPHONE JACK
  3.5 mm audio output

• AUDIO IN
  3.5 mm audio input

• VIDEO IN
  RCA port for video input

• USB-A
  For touch function

• VGA IN
  Support up to 1080p 60Hz

• HDMI IN
  Support up to 4K 30Hz

• UPGRADE
  firmware upgrade


IP65/NEMA 4
FOR FRONT PANEL
Front panel of the monitor is designed to carry IP65 rating and NEMA 4 degree of protection which offer complete protection against particles, and a good level of protection against water projected by nozzle against monitor from any direction.

• SCREWS FOR FIXING
  The monitor can be embedded in a panel by using the special fixing screw kits.

• VESA 75/100MM BRACKЕТ
  Quality folding VESA 75/100mm bracket that can be placed on a table or fixed to ceiling.

• INDUSTRIAL CONTROL
• DASHBOARD INTERFACE
• SMART LOCKER

SPECIFICATIONS
